REVAC ECO AUTO

Description

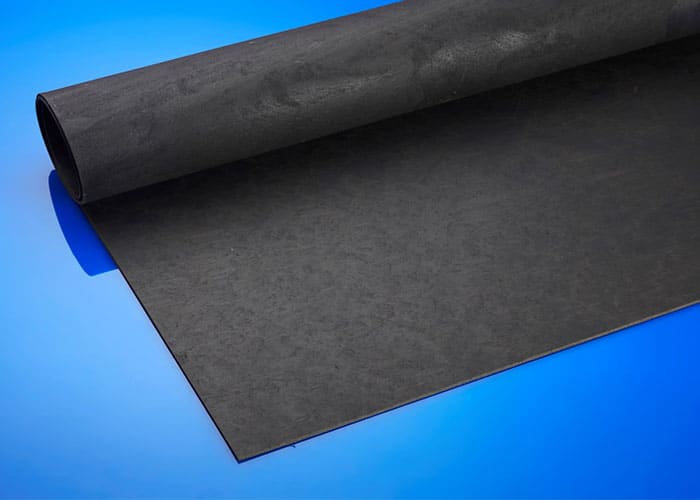

Developed and formulated by WSBL Ltd at our UK manufacturing facility, the REVAC® Eco Auto range of acoustic barriers is a limp polymeric noise insulation material with excellent acoustic attenuation properties.

The material is formulated to give excellent thermoforming capability. The polymer sheet is a compound based on thermoplastics, synthetic elastomers and naturally occurring minerals.

The material does not contain any unrefined aromatic oils, lead, cadmium, or halogenated polymers. The material has been formulated to comply with the raw material restrictions imposed by several automotive companies.

General Product Information:
  • Designed to improve the sound insulation and absorption of existing panels of metal, wood, plastic etc., at all frequencies.
  • The mat is normally fixed in intimate contact with the original panel.
  • REVAC® barriers are particularly effective in overcoming dip resonance found in stiff lightweight composites such as plywood sheets and hollow core panel
  • The material has been formulated to comply with the raw material restrictions imposed by several automotive companies.
  • Other mouldable variants of the REVAC® (Eco) Auto range of products are available
Benefits:
  • Thermoplastic material, so fully recyclable dependent on customer end use application.
  • Easy to handle and install.
  • Easy to cut with a knife.
  • High acoustic insulation.
  • Extremely good flexibility compared to other heavily filled acoustic materials of similar thickness.
  • Cold and heat resistant (to temperatures detailed in material specific TDS).
  • High sound dampening on metallic surfaces.
  • Available in sheet or roll form, dependent upon customer requirements.
  • Self-Adhesive variants available.
  • Manufactured using same product recycled content.
  • Easy recycling of product at end of life due to the compatibility of plastics used in the construction.
Revac Eco Auto Variants*

*FURTHER PROJECT SPECIFIC OPTIONS ARE AVAILABLE UPON REQUEST

Revac Eco Auto V2
  • Polymeric Noise Control Barrier – Density: 1800kg/m³
  • Excellent moulding capabilities compared to other heavily filled barriers
  • Various weights available ranging from 2kg/m2 up to 10kg/m2
  • Particularly soft and flexible compared to other similar materials
Revac Eco Auto DC
  • Polymeric Noise Control Barrier – Density: 2000kg/m³
  • Good moulding capabilities compared to other heavily filled barriers
  • Various weights available ranging from 2kg/m2 up to 10kg/m2
  • Particularly soft and flexible compared to other similar materials
GENERAL ACOUSTIC PERFORMANCE DATA Revac Eco Auto
Material Weight (kg/m²) Thickness (mm) Average dB Loss (Rw) Downloads
Revac® Eco Auto 30 DC 3kg/m² 1.5mm 20dB Open PDF
Revac® Eco Auto 50 DC 5kg/m² 2.5mm 25dB Open PDF
Revac® Eco Auto 30 V2 3kg/m² 1.67mm 20dB Open PDF
Revac® Eco Auto 50 V2 5kg/m² 2.78mm 25dB Open PDF

*Other weights/thickness available upon request
